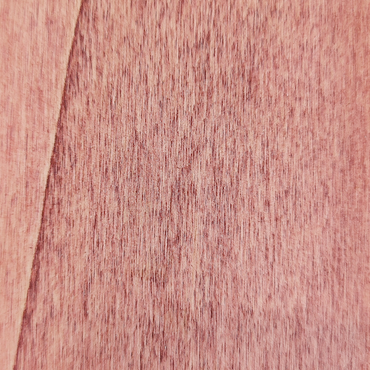

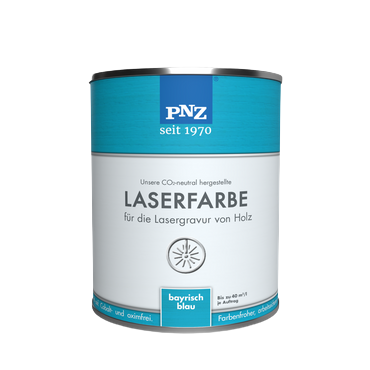

PNZ laser colour 0.25 or 0.75l - different colours

Ingredients: Refined natural oils such as soy and sunflower oil, isoaliphate, microwaxes, additives, lead-free dry fabrics, titanium dioxide, pigments.

Consumption:

Approx. 25–50 ml/m², i.e. 1 litre laser colour ranges for max. 40 m² of oiled area per order, depending on the type of wood and surface.

Application:

Surface must be free of grease, clean, dust-free and dry (sanded if necessary). Application temperature (incl. drying) above + 8°C. Wood moisture content not above 18%. Humidity < 60%. The laser paint has different effects on different surfaces. A trial coating is necessary and recommended. Stir contents well before and during use. Repair holes and cracks with a suitable repair paste. Laser paint is a glazing paint.

Be sure to note: The laser ink must be completely dry before laser processing! Laser paint can be processed manually and by machine. Apply the first coat thinly with a brush, roller or paint spatula and spread it out. Depending on the desired appearance, remove excess after 10 minutes. Allow to dry for 5-8 hours with good ventilation. Apply the second coat in the same way as the first. The surface can then be polished over after complete drying (approx. 24 hours). This increases the durability. For more heavily used surfaces (such as table tops or shelves), it is recommended to apply a thin colourless final coat after lasering.

Technical Data Sheet
