Mr Beam Air Filter III
A strong community where you can find help and exchange ideas!
From the device to the accessories, the consumables and the inspection, you get everything coordinated with us and from a single source !
Made in Germany : You can always rely on quality and service!

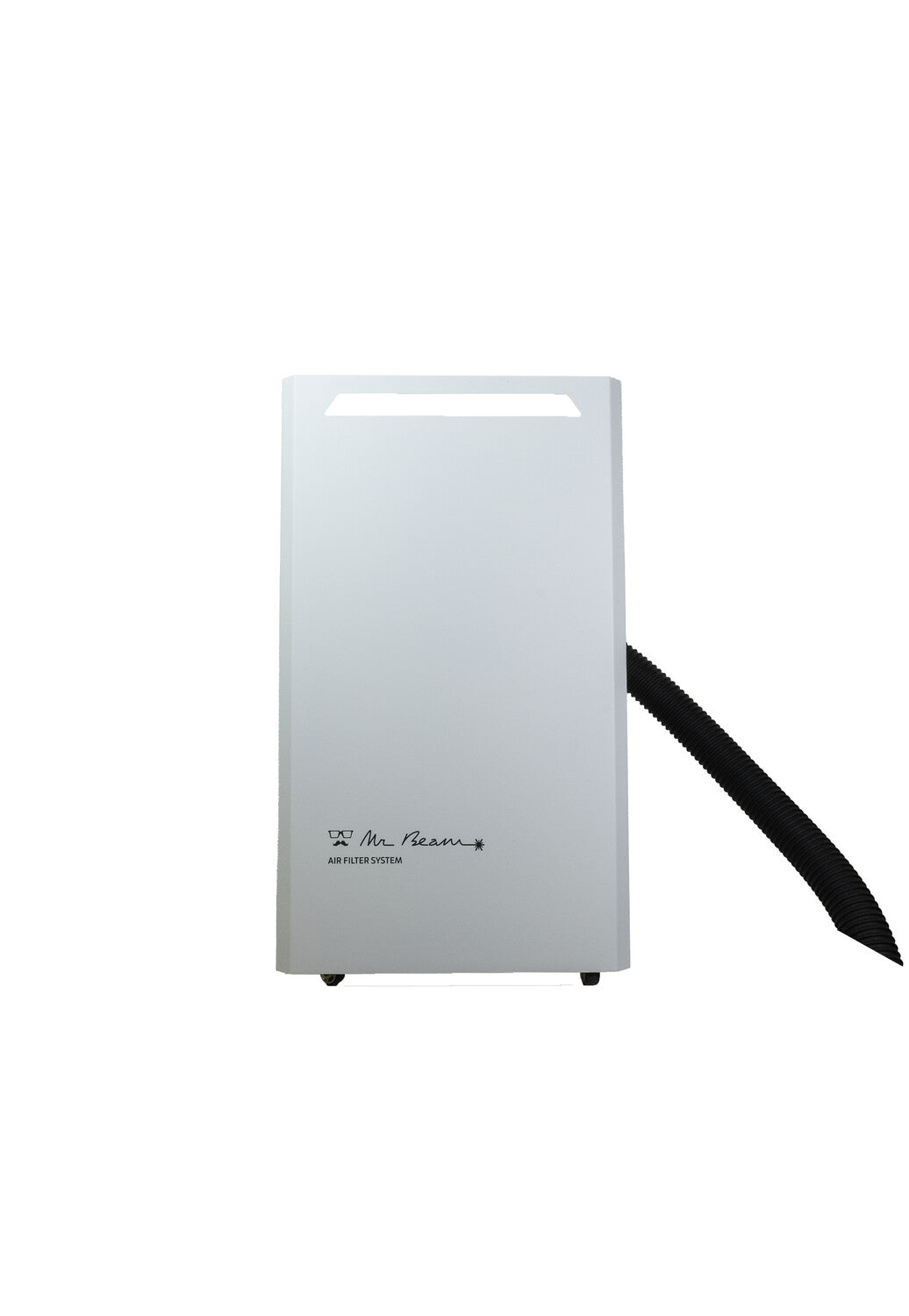

Air Filter III - experience the change!
We are very happy that our new Air Filter is finally available!
Dimensions Air Filter System (approx.)
Width/Depth/Height: 335 x 525 x 565 mm
Weight: 19kg
Maximum sound level: 56 dB (A)
Environmental conditions
Ambient temperature: 5 - 30 °C
Humidity: 10% - 60%
Power supply
Operating voltage: 19V
Power consumption: 90W
Note: We reserve the right to make technical changes

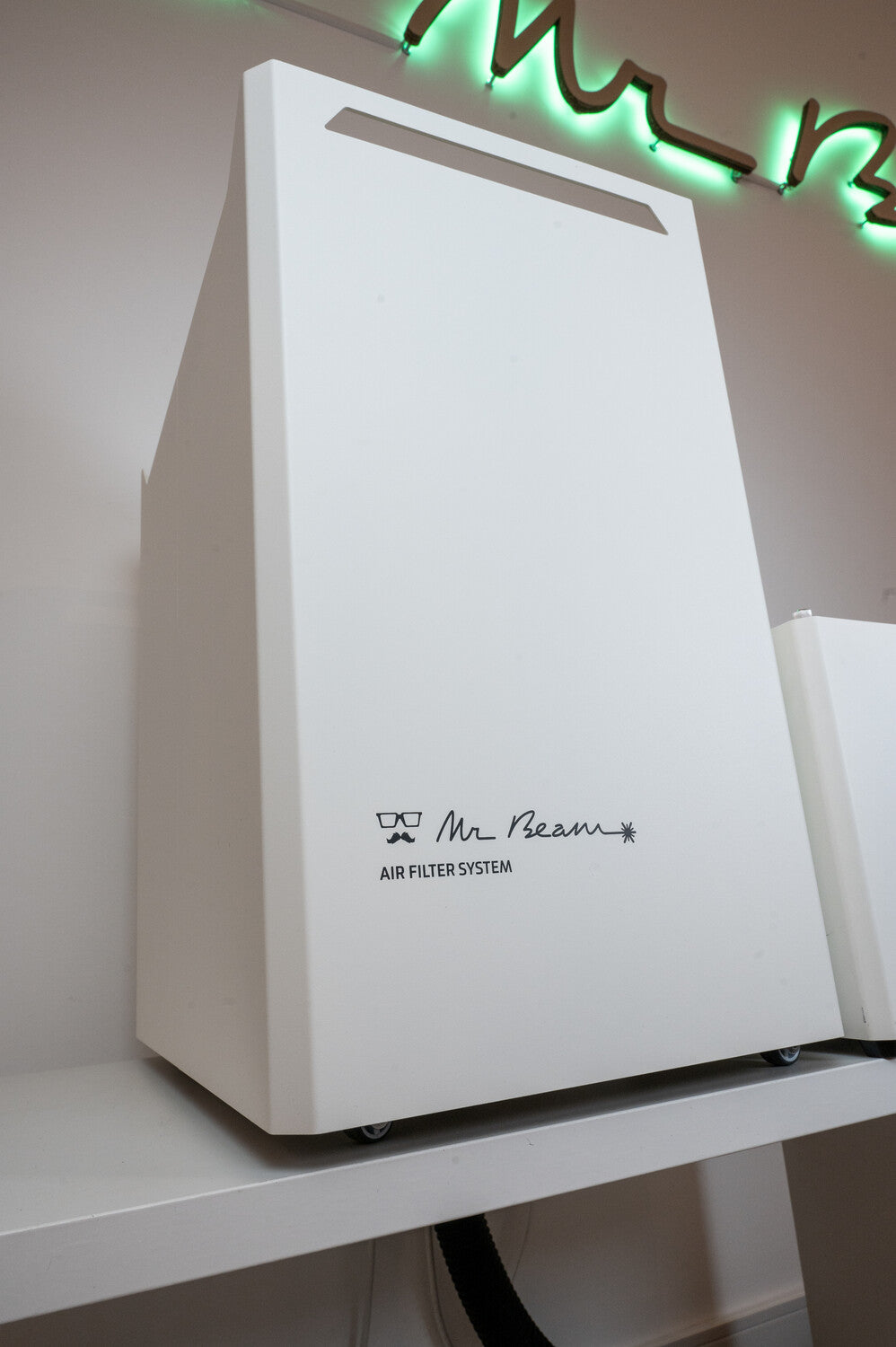

How is the Air Filter III actually constructed?
The air is pumped out using a fan in the bottom of the air filter system from the housing of the Mr Beam via the exhaust hose into the back of the air filter system. There it first passes the vertically oriented one Pre-filter [1] before it goes into the on both sides Main filter [2] is vacuumed in order to have the largest area available. The clean air is then sucked out of the bottom of the main filter.
1.
2.
The pre-filter removes all coarse particles from the exhaust air, while the main filter filters out fine dust and odours using the HEPA and activated carbon filters . Clean air is then blown out again on the underside of the air filter system.
Which air filter system is right for me?
The Air Filter III In contrast to our Air Filter II, it has one significantly more powerful fan, which increases the air flow. So the effort is worth it, mainly when there is a lot of material abrasion. In addition, the ones used are Filter in Air Filter III larger than in Air Filter II. This is how they are Not only more efficient at filtering air, but also last longer. Of course, the filters still need to be changed from time to time. You can find out how this works with both air filter systems in this article.
All in all, it's suitable Air Filter III for all frequent users of the Mr Beam who also work with materials with a lot of abrasion.
Apart from that, the Air Filter III requires more power due to the more powerful fan. Therefore, an extra power supply is required, which is of course included in the scope of delivery.
Please note: The new main filter weighs over 10kg. Therefore, the new Air Filter is not as portable as the Air Filter II. We recommend removing the filter before transport. The new filter is equipped with practical wheels for transport in the office/workshop.
Air filter III
Downloads for your Mr Beam!
Welcome to our download area - Here you will find helpful information, instructions and files about the hardware and software of your Mr Beam. By the way, you can also find some of these directly in the user interface as soon as you have connected to your Mr Beam.
Hardware downloads
Instructions for laser cutter: Download
Laser head cleaning instructions
Quickstart Guide German: Download
Data sheet laser cutter Mr Beam II dreamcut [S]: Download
Data sheet laser cutter Mr Beam II dreamcut [x] : Download
Air filter data sheet: Download
Air Filter System Instructions: Download
Instructions Air Filter III: Download
Instructions Mr Beam Height Extension: Download
Laser safety: Download
Declaration of conformity Mr Beam laser cutter: Download
Declaration of Conformity Mr Beam Air Filter System: Download
Here Click here to download our multilingual instructions
Software downloads:
Latest software update: Download
IP Tool (USB): Download
Network Reset (USB): Download
WIFI configuration (USB): Download
Stick to delete the design files: Download
Design Backup Stick: Download
Can I return ordered products?
Consumers have a 14-day right of withdrawal. Please note that, for example, if you purchase a device, this means that it may only be used for testing purposes during the 14-day period. We reserve the right to charge for excessive loss of value. To test the Mr Beam, we recommend renting it in advance. If materials/filters/accessories have been demonstrably damaged during testing and trying out, we reserve the right to demand compensation
How much are the shipping costs?
Free shipping inside of Germany. If you come from another country, shipping will be calculated during checkout.
What is actually covered by the Mr Beam laser cutter's warranty and what is repaired?
The guarantee covers all repairs that arise from possible production or device errors. This applies to the mechanical components as well as all relevant components, safety devices and software. We must invoice for repairs resulting from handling errors or accidental damage by the customer - as this requires us to use additional and unscheduled working time and spare parts. If you have a problem with your Mr Beam, contact us via our ticket system.
You can find more information about repairs on ourrepair service landing pages.
Here you will find the instructions for packing your Mr Beam for return: Packaging instructions
