Mr Beam Upgrade Complete Set ([x] laser head, height extension & air filter III)

Skip to product information
1 of 9

Your choice:

00h 00m 00s: 18% discount with code: HEIGHT20
Regular price € 2.499,00 EUR
Regular price Sale price € 2.499,00 EUR
Offer Sold out
Tax included. Shipping calculated at checkout.

Delivery time 1 - 3 days

View full details

A strong community where you can find help and exchange ideas!

From the device to the accessories, the consumables and the inspection, you get everything coordinated with us and from a single source !

Made in Germany : You can always rely on quality and service!

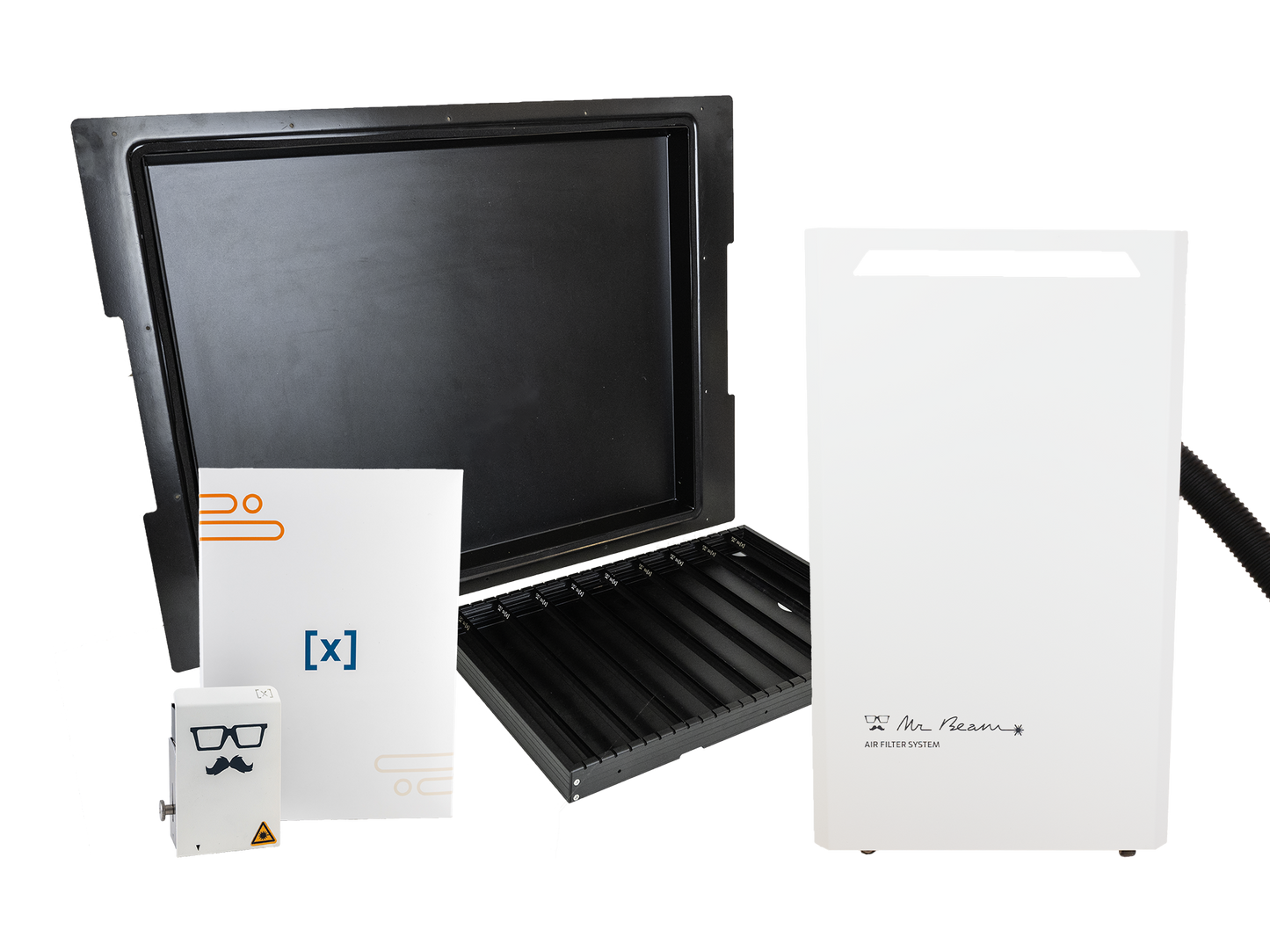

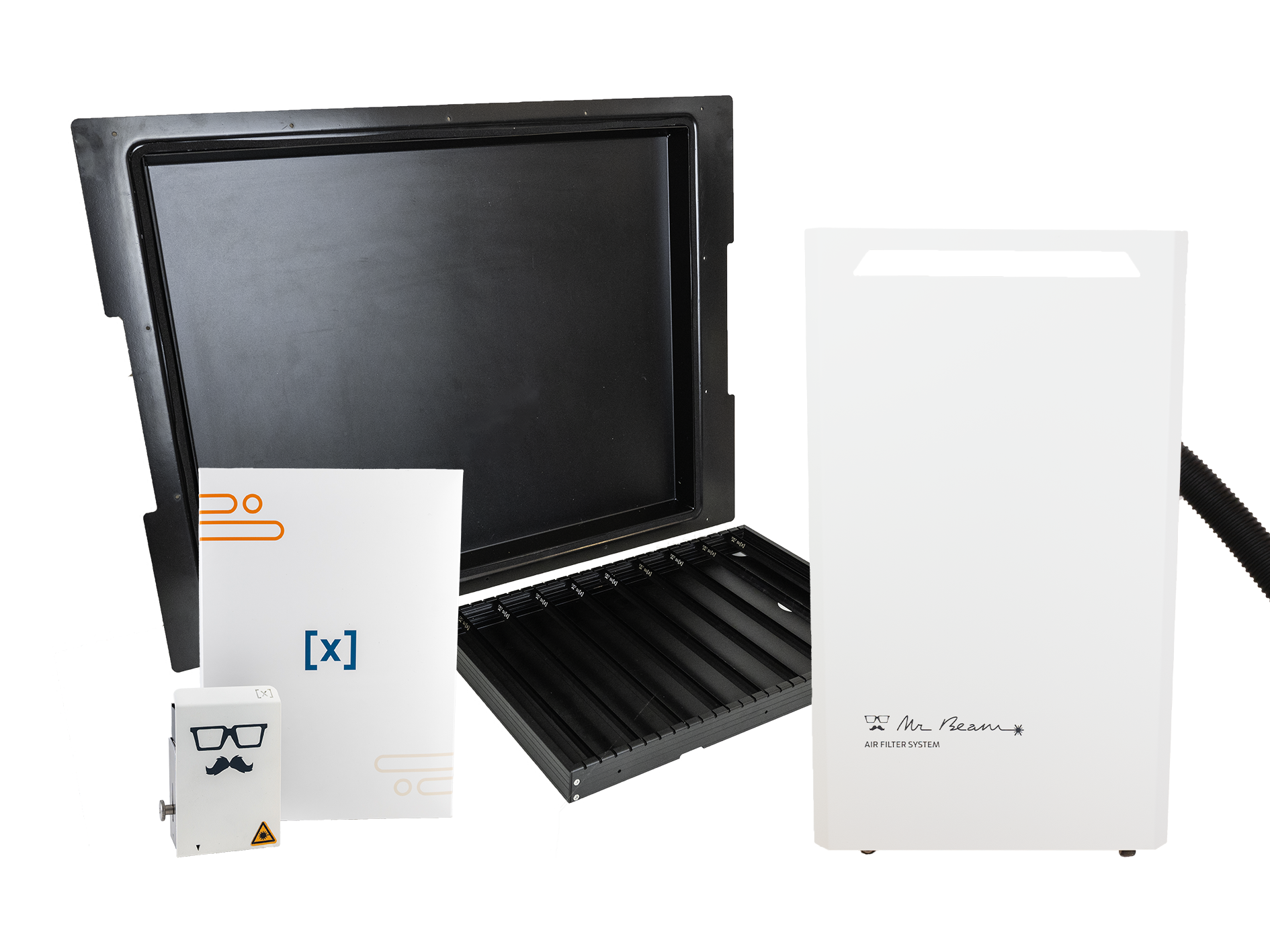

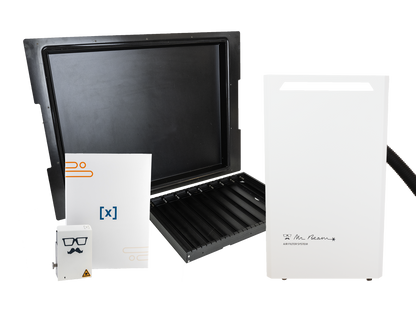

Scope of delivery:

Mr Beam II dreamcut [x] laser head

Mr Beam Air Filter III

Mr Beam Height Extension & Cutting Frame

Experience the change and level up your laser!

This set is ideal for all Mr Beam II dreamcut and Mr Beam II dreamcut [S] users who want to completely convert their laser. It includes everything you need! The set includes the new [x] laser head (without power supply), the Mr Beam Height Extension with a cutting frame and the new Air Filter III system.

Information about the new laser head:


The

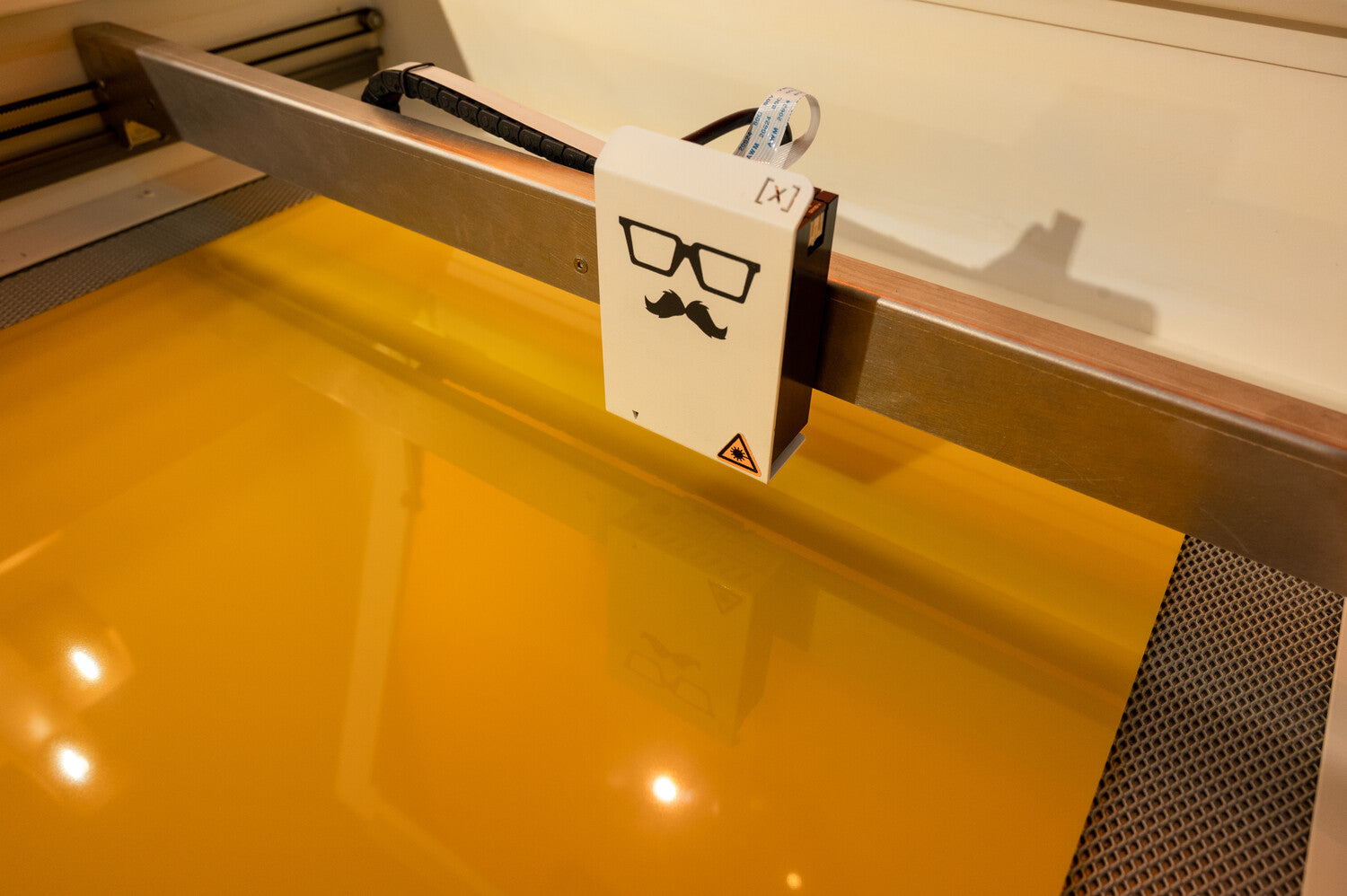

[x] stands for e X trem. Equip your Mr Beam with an incredible upgrade now! Our 10W laser head is ideal for power users who cut a lot of wood or want to try out other materials such as acrylic. The motto is: more power. more speed. more creativity !

With the new laser head you can now cut even faster and also process thicker materials. White acrylic (opaque) is no longer an impossibility and plywood that can be lasered up to 8-10mm is no longer a problem for our new laser head (the laser must of course be clean and the focus must also be set correctly). As always, you can find the right material in our shop!

Information about the Mr Beam Height Extension:

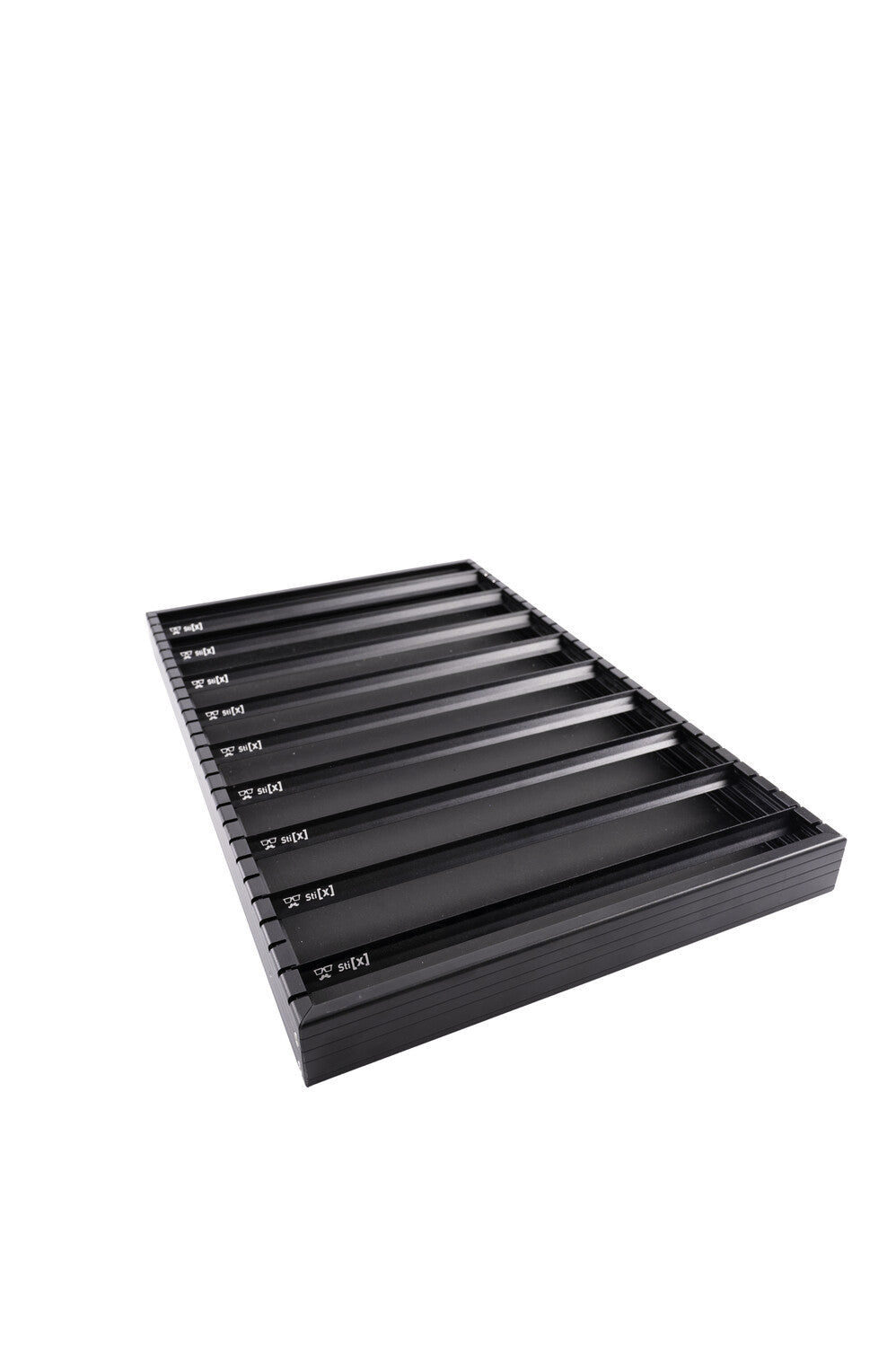

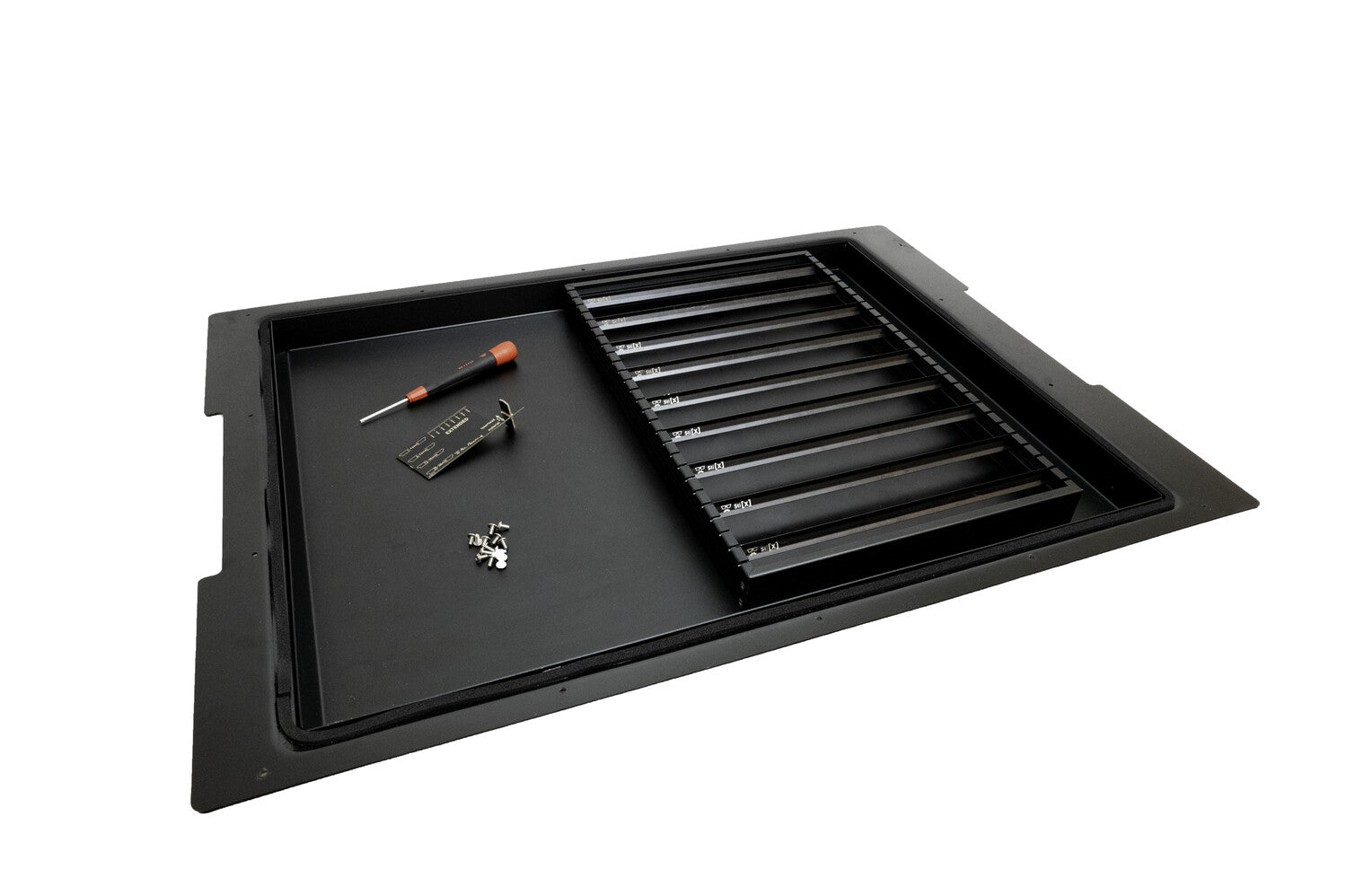

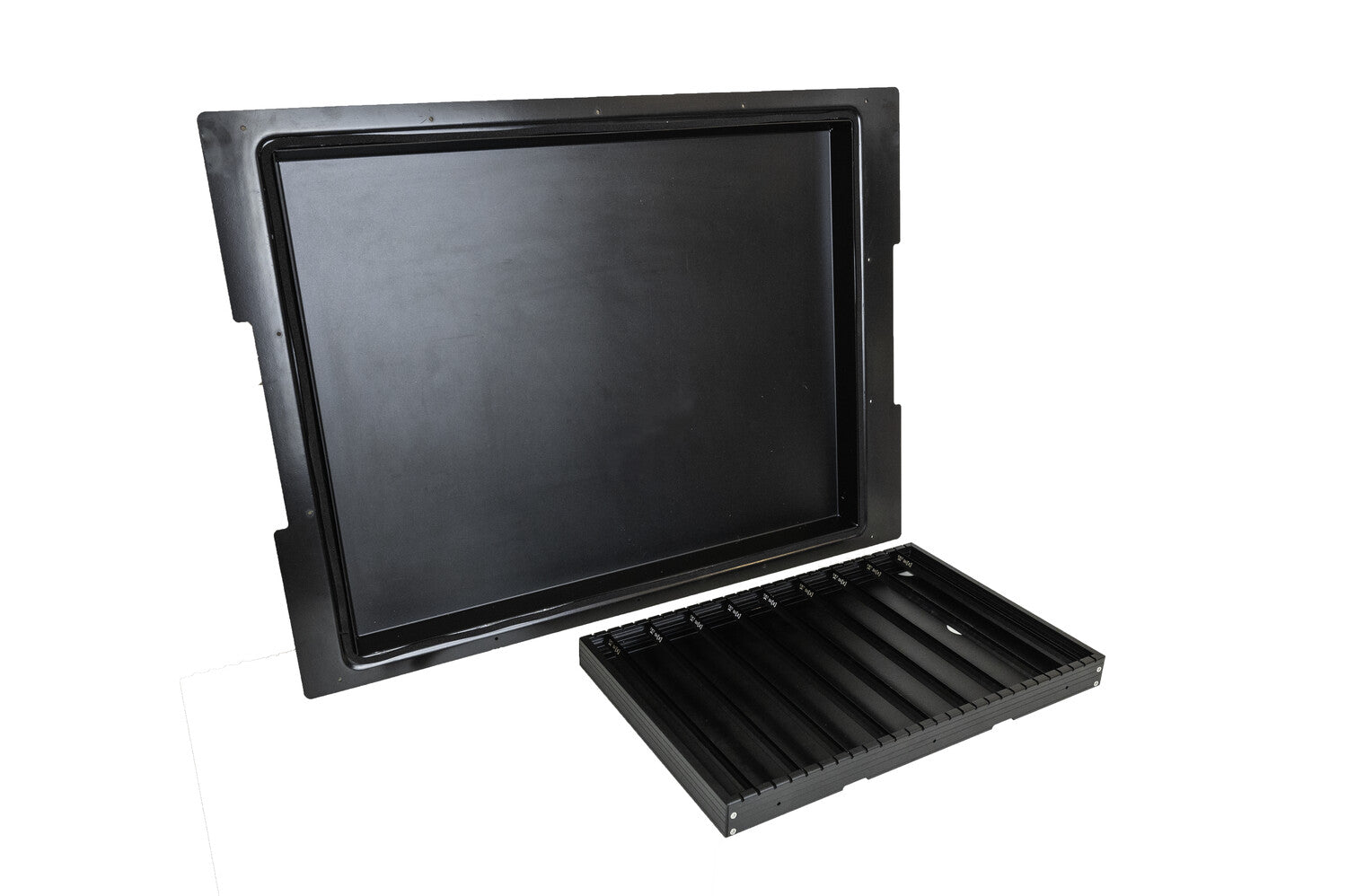

The Mr Beam Height Extension now allows you to engrave taller objects with your Mr Beam. Instead of the usual object height of 38 mm, you can now engrave objects with a height of 68 mm with the deeper base. Thanks to the Mr Beam Cutting Frame, you don't have to rebuild the floor as soon as you want to laser objects up to 38mm as usual. The frame is 30mm high and converts the height extension into the regular Mr Beam in no time. The cutting frame is easy to clean and catches pieces of material, so cleaning is even quicker than with the grid floor. This opens up a variety of new possibilities for you. For example, larger wooden boxes, bags, soap dispensers or large stones can now be engraved without any problems. As always, there are almost no limits to your creativity.

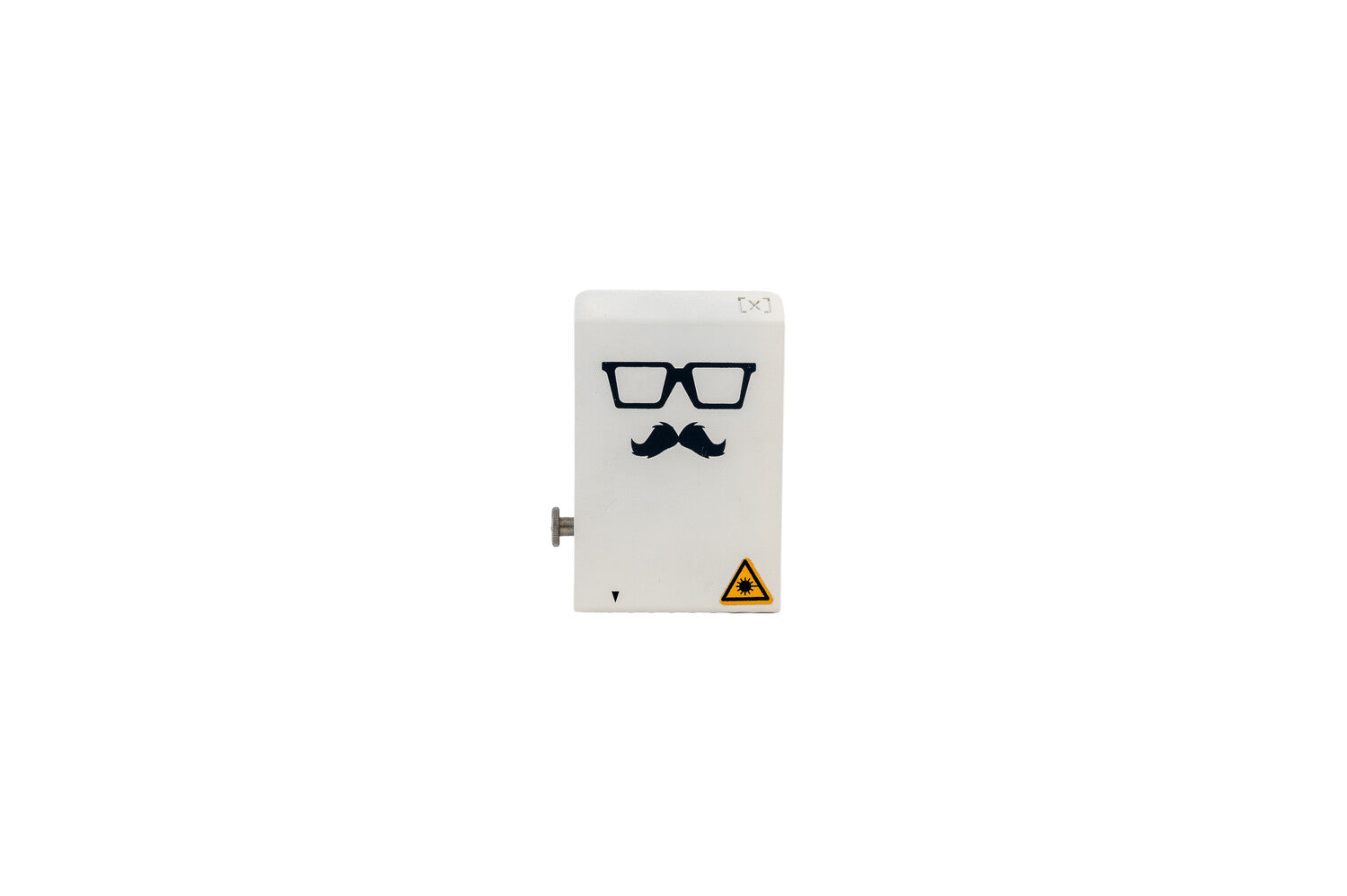

[x] Laser head

Laser source
diode laser
Laser power
10W
Focus point diameter
0.15mm
Wavelength
450 nm (blue, visible light)
Engraving speed
100 - 3000 mm/min
Cutting speed
50 - 3000 mm/min

Air filter III

Dimensions
335x565x525mm
Weight
23.3kg
Ambient temperature
5 - 30°C
Humidity
10% - 60%
Noise level max.
< 58 dB (A)
Operating voltage
19V
Power consumption
60W
Airflow
up to 1,5 m³/min
Accesories
Pre-filter, main filter, air filter controller
Note: We reserve the right to make technical changes
Downloads for your Mr Beam!

Welcome to our download area - Here you will find helpful information, instructions and files about the hardware and software of your Mr Beam. By the way, you can also find some of these directly in the user interface as soon as you have connected to your Mr Beam.

Hardware downloads

Instructions for laser cutter: Download

Laser head cleaning instructions

Quickstart Guide German: Download

Data sheet laser cutter Mr Beam II dreamcut [S]: Download

Data sheet laser cutter Mr Beam II dreamcut [x] : Download

Air filter data sheet: Download

Air Filter System Instructions: Download

Instructions Air Filter III: Download

Instructions Mr Beam Height Extension: Download

Laser safety: Download

Declaration of conformity Mr Beam laser cutter: Download

Declaration of Conformity Mr Beam Air Filter System: Download

Here
 Click here to download our multilingual instructions

Software downloads:

Latest software update: Download

IP Tool (USB): Download

Network Reset (USB): Download

WIFI configuration (USB): Download

Stick to delete the design files: Download

Design Backup Stick: Download

Can I return ordered products?

Consumers have a 14-day right of withdrawal. Please note that, for example, if you purchase a device, this means that it may only be used for testing purposes during the 14-day period. We reserve the right to charge for excessive loss of value. To test the Mr Beam, we recommend renting it in advance. If materials/filters/accessories have been demonstrably damaged during testing and trying out, we reserve the right to demand compensation

How much are the shipping costs?

Free shipping inside of Germany. If you come from another country, shipping will be calculated during checkout.

What is actually covered by the Mr Beam laser cutter's warranty and what is repaired?

The guarantee covers all repairs that arise from possible production or device errors. This applies to the mechanical components as well as all relevant components, safety devices and software. We must invoice for repairs resulting from handling errors or accidental damage by the customer - as this requires us to use additional and unscheduled working time and spare parts. If you have a problem with your Mr Beam, contact us via our ticket system.

You can find more information about repairs on ourrepair service landing pages.

Here you will find the instructions for packing your Mr Beam for return: Packaging instructions

Item number 920-00074

Scope of delivery:

Mr Beam II dreamcut [x] laser head

Mr Beam Air Filter III

Mr Beam Height Extension & Cutting Frame

Experience the change and level up your laser!

This set is ideal for all Mr Beam II dreamcut and Mr Beam II dreamcut [S] users who want to completely convert their laser. It includes everything you need! The set includes the new [x] laser head (without power supply), the Mr Beam Height Extension with a cutting frame and the new Air Filter III system.

Information about the new laser head:


The
[x] stands for e X trem. Equip your Mr Beam with an incredible upgrade now! Our 10W laser head is ideal for power users who cut a lot of wood or want to try out other materials such as acrylic. The motto is: more power. more speed. more creativity !

With the new laser head you can now cut even faster and also process thicker materials. White acrylic (opaque) is no longer an impossibility and plywood that can be lasered up to 8-10mm is no longer a problem for our new laser head (the laser must of course be clean and the focus must also be set correctly). As always, you can find the right material in our shop!

Information about the Mr Beam Height Extension:


The Mr Beam Height Extension now allows you to engrave taller objects with your Mr Beam. Instead of the usual object height of 38 mm, you can now engrave objects with a height of 68 mm with the deeper base. Thanks to the Mr Beam Cutting Frame, you don't have to rebuild the floor as soon as you want to laser objects up to 38mm as usual. The frame is 30mm high and converts the height extension into the regular Mr Beam in no time. The cutting frame is easy to clean and catches pieces of material, so cleaning is even quicker than with the grid floor. This opens up a variety of new possibilities for you. For example, larger wooden boxes, bags, soap dispensers or large stones can now be engraved without any problems. As always, there are almost no limits to your creativity.

[x] Laser head

Laser source
diode laser
Laser power
10W
Focus point diameter
0.15mm
Wavelength
450 nm (blue, visible light)
Engraving speed
100 - 3000 mm/min
Cutting speed
50 - 3000 mm/min

Air filter III

Dimensions
335x565x525mm
Weight
23.3kg
Ambient temperature
5 - 30°C
Humidity
10% - 60%
Noise level max.
< 58 dB (A)
Operating voltage
19V
Power consumption
60W
Airflow
up to 1,5 m³/min
Accesories
Pre-filter, main filter, air filter controller
Note: We reserve the right to make technical changes
Downloads for your Mr Beam!

Welcome to our download area - Here you will find helpful information, instructions and files about the hardware and software of your Mr Beam. By the way, you can also find some of these directly in the user interface as soon as you have connected to your Mr Beam.

Hardware downloads

Instructions for laser cutter: Download

Laser head cleaning instructions

Quickstart Guide German: Download

Data sheet laser cutter Mr Beam II dreamcut [S]: Download

Data sheet laser cutter Mr Beam II dreamcut [x] : Download

Air filter data sheet: Download

Air Filter System Instructions: Download

Instructions Air Filter III: Download

Instructions Mr Beam Height Extension: Download

Laser safety: Download

Declaration of conformity Mr Beam laser cutter: Download

Declaration of Conformity Mr Beam Air Filter System: Download

Here
 Click here to download our multilingual instructions

Software downloads:

Latest software update: Download

IP Tool (USB): Download

Network Reset (USB): Download

WIFI configuration (USB): Download

Stick to delete the design files: Download

Design Backup Stick: Download

Can I return ordered products?

Consumers have a 14-day right of withdrawal. Please note that, for example, if you purchase a device, this means that it may only be used for testing purposes during the 14-day period. We reserve the right to charge for excessive loss of value. To test the Mr Beam, we recommend renting it in advance. If materials/filters/accessories have been demonstrably damaged during testing and trying out, we reserve the right to demand compensation

How much are the shipping costs?

Free shipping inside of Germany. If you come from another country, shipping will be calculated during checkout.

What is actually covered by the Mr Beam laser cutter's warranty and what is repaired?

The guarantee covers all repairs that arise from possible production or device errors. This applies to the mechanical components as well as all relevant components, safety devices and software. We must invoice for repairs resulting from handling errors or accidental damage by the customer - as this requires us to use additional and unscheduled working time and spare parts. If you have a problem with your Mr Beam, contact us via our ticket system.

You can find more information about repairs on ourrepair service landing pages.

Here you will find the instructions for packing your Mr Beam for return: Packaging instructions
